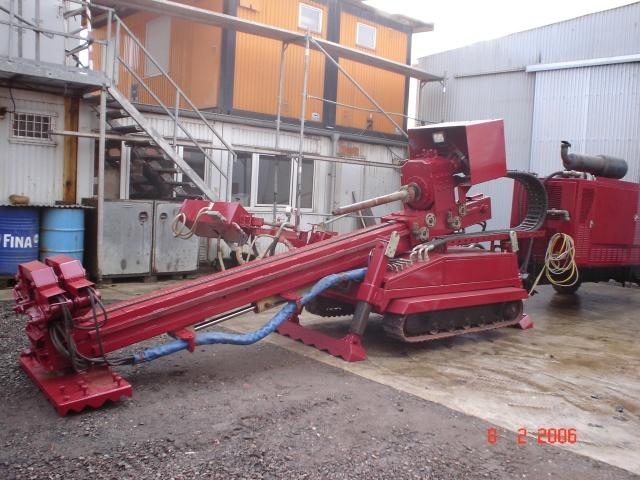

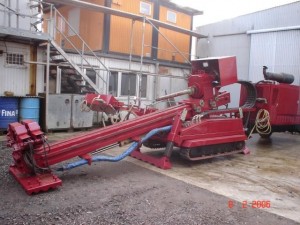

Technical Data for Scorpio 903 HDS
Horizontal Drilling Equipment
Year: 1999

Euro: 34.000.- €

Pull back 24,2 t
Thrust 17,0 t
Torque
gear I
0-40 rpm
9.025 Nm
gear II
0-50 rpm
6.867 Nm
gear III
0-70 rpm
4.611 Nm

SIZES
length 5.600 mm
width 1.300 – 1700* mm
height 1.840 mm
weight 4.500** kg

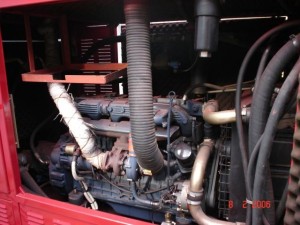

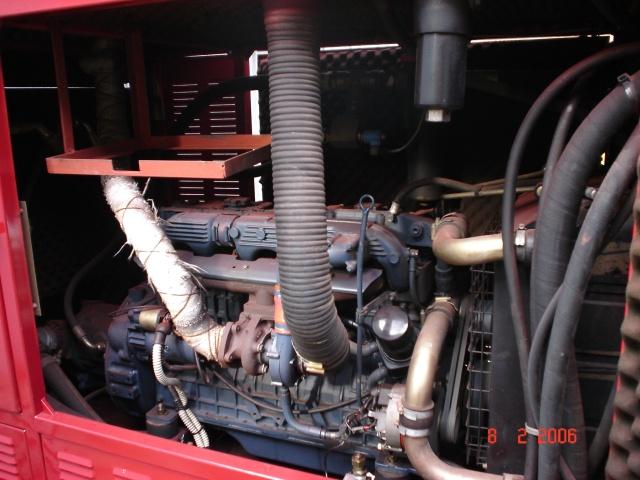

POWER UNIT
engine model
C – 140 D
97 kW
at 3.000 rpm

SIZES
length 3.145 mm
width 1.520 mm
height 1.581 mm
weight 1.800 kg

(*) variable undercarriage width

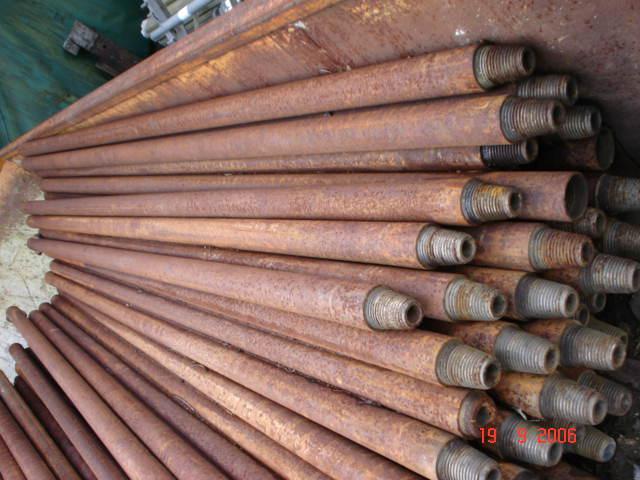

(**) without drill pipes on board
