One Centaur 50Gas Turbine Generator Package

ORIGINAL DATE OF MANUFACTURER 1997.

21,867 FIRED HOURS FROM NEW

1.         GAS TURBINE

-           Centaur 50 (T5701) Gas Turbine. Nominal 4.0 MW.

-           Speed reducing gearbox.

-           Flexible shear coupling.

-           Vibration monitoring system (two channel – turbine and gearbox).

GAS TURBINE AUXILIARY SYSTEMS

2.         GAS FUEL SYSTEM

-           Pressure monitor.

-           Primary and secondary shut off valves.

-           Fuel control valve.

-           Fuel control actuator.

-           Polishing filter unit.

3.         LUBRICATION SYSTEM

-           Main pump mechanically driven from gas turbine gearbox.

-           AC motor driven pre/post pump.

-           Duplex oil filter.

-           Oil tank in skid base.

-           Pressure and temperature controllers.

-           Oil coalescer (supplied loose).

4.         ELECTRO-HYDRAULIC START SYSTEM

-           Hydraulic start motor (gearbox mounted).

-           Hydraulic pump (AC motor driven).

-           Oil tank.

5.         COLD CRANK WATER WASH SYSTEM

-           Cold crank water wash manifold

-           Water wash trolley supplied loose incorporating:

6.         AC GENERATOR (LEROY SOMER)

-           Horizontal, 2 sleeve bearing, 4 pole.

-           Salient pole brushless.

-           Open air circuit.

-           Enclosure IP21.

-           Temperature rise F.

-           Insulation Class F.

-           Supply 3.3KV/3-phase/3 wire/50 Hz.

-           Continuous rating matched to gas turbine (total temperature basis) at 0.8pf across specified ambient range.

-           Automatic voltage regulator including parallel operation CT’s quad droop assembly, three phase sensing, power factor control and manual operation.  (AVR etc. mounted in control panel).

-           CT’s 3 off for protection.

-           CT’s 3 off for Dale instrumentation…

-           VT between star point and earth for protection relays.

-           Stator winding temperature monitoring (2 RTD’s per phase).

-           Drive end and non-drive end bearing temperature detection.

-           Drive end and non-drive end bearing seismic vibration monitors.

-           Anti condensation heaters.

OFF SKID CONTROL AND ELECTRICAL EQUIPMENT

7.         TURBINE CONTROL PANEL

-           Gas turbine/auxiliary systems/governor/load/T5 sequence controller

(Mitsubishi PLC).

-           Visual display unit system interface.

-           Turbine and alternator vibration monitoring equipment.

-           T5 temperature indicator.

-           Turbine speed indicator.

-           Turbine hours run indicator.

-           Turbine start counter.

-           Hard wire PLC backup logic where required.

-           Miscellaneous push buttons, switches and indicators as required by Dale Control System.

-           Miniature moulded case circuit breakers for circuit protection.

-           Panel anti condensation heater and thermostat.

-           Additional panel mounted hardware including PLC computer serial interface module to enable remote monitoring and external systems interface.

-           Panel ventilation fan.

-           Panel interior light.

-           PC power supply socket.

8.         ALTERNATOR CONTROL PANEL

-           Key pad operated electronic metering unit (V, Hz, A, kW, kWh, kVAR and PF).

-           Bus/Mains and generator zero voltmeter.

-           Bus/Mains and generator dual scale frequency meter.

-           Synchroscope.

-           Automatic synchronising equipment including check sync relay.

-           Miscellaneous push buttons, switches and indicators.

-           Miniature moulded case circuit breakers for circuit protection.

-           Panel anti-condensation heater and thermostat.

-           Loose items supplied with the alternator, for example the AVR, are also mounted in the control panel.

-           Panel ventilation fan.

-           Panel interior light.

9.         AUXILIARY SYSTEMS PANEL

-           DC backup battery and charger.

-           DC voltmeter and under voltage detection.

-           Panel anti-condensation heater and thermostat.

-           Panel ventilation fan.

-           Panel interior light.

10.       DOCUMENTATION

2 copies of the following supplied:

-           Dale instruction manual.

-           Full set of operation and maintenance manuals.

-           Manufacturing programme.

-           Drawings:

-           General arrangement.

-           Foundation loading.

-           Electrical schematics

-           Liquid schematics.

-           Fuel schematics.

11.       MISCELLANEOUS

-           First fill of lubricating and hydraulic oil.

-           Static test at Dale works.

-           First years supply of consumables

-           Outdoor Enclosure.

-           GT combustion air intake filters, ductwork and attenuation.

-           Enclosure ventilation fan.

-           Fire and gas detection/fire fighting equipment.

-           Enclosure ventilation inlet and outlet filters, ductwork and attenuation

-           Power Transformer.

13.       SALES OPTIONS

-           5 Year extended warranty and maintenance contract.

-                      Installation & Commissioning. – € Euros 50,000.00 except Iraq

Customer to provide engineer(s) with good quality single accommodation, food and transport upon arrival at works, at no cost to Contractor.

-                      Dual Fuel Conversion.

-                      60 Hz Conversion.

-                      Refurbished to Zero Hours. – € Euros 1,300,000.00 FOB European Port

Warranty will be 12 month from Installation or

5000 running hours, whichever is soonest.

-                      Upgraded Controls System.

-                      As is where is. – United Kingdom

-                      Delivered.

14.    SALES PRICE

-                    As is where is. – Europe  € 485,000,–

-                     All transport and shipping costs at buyers charge

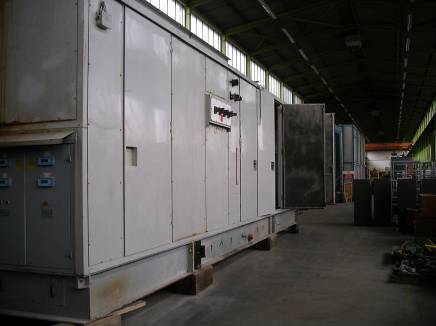

Pictures: attached, more pictures on request.

Viewing: to be agreed with us.

Remarks: 1.) installation and putting into operation on request.

2.) the plant is in excellent condition and finally inspected
