New ST 18 Power Generator Package

New ST 18 Power Generator Package

PRICE: € 1.79 Mill. EX Work.

Description: attached.

Delivery: AT ONCE.

Guaranty: with full warrantee.

Viewing: to be agreed with us.

The ST18 power generation package is a fully-integrated modular system which can be installed offshore to generate ultra-low-cost ancillary power directly from excess gas production.

The self-contained package can generate approximately 2MW of electrical power at 600V, making a significant contribution towards a reduction in installation operating costs (eg. by cutting diesel consumption) while at the same time improving overall environmental performance by reducing flaring.

Alba Power’s ST18 package is based on the Pratt & Whitney gas turbine engine,

which features high efficiency with low maintenance requirements

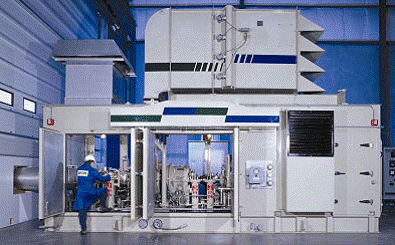

Alba Power’s ST18 module has just been completed at base and is available for immediate viewing & dispatch.



The module’s 2MW output (generated directly from excess gas production) was designed to contribute to significant reductions

on the platform’s operating costs by reducing both the running costs and the maintenance costs of the installation’s conventional power generators.



Alba Power supplies a full turnkey installation service for the ST18 power generation package with optimised commissioning time and a wide variety of service options.

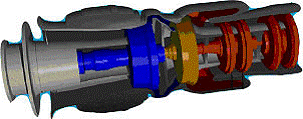

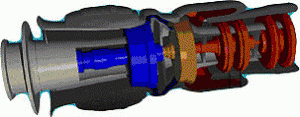

The ST18 engine layout

Radial intake       LP compressor      HP turbine


HP compressor  LP turbine  Power turbine


Summary specification

Engine output:

-2415 shp

-17.5 lbs/sec exhaust flow

-800,000 scfd natural gas fuel

consumption

Generator power output at ISO

conditions: Base Load

-1.8MW -4160V

-

-Output transformed to 600V

-Automatic synchronisation and loadsharing

(DLSC) control system

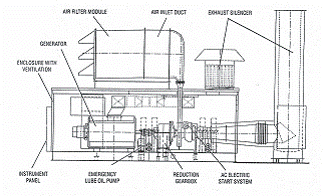

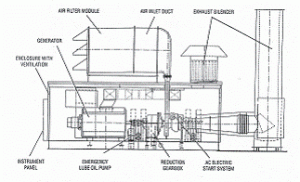

The main components

-Pratt & Whitney ST18 gas turbine

engine

-Allen Gears reduction gearbox

-Ideal Electric alternator

-AAF marinised air filter

-Universal Silencer exhaust system

-Control room (including PLC, MCC,

HMI and UPS)

-Switchgear and transformer

-Lube oil system

-Fire suppression system

-Neutral ground resistor

The control room

The ST18 features an independent

control module housing:

-Programmable logic controller

-Human machine interface

-Motor control centre

-Uninterruptible power supplies

-HVAC system

-Operator station

-Switchgear and transformer



The Pratt & Whitney ST18 gas turbine engine

The ST18 gas turbine is a derivative of the PW100 turbo-prop aircraft engine, of which there are over 4800 in current flight service with over 100 million hours of operating time worldwide.



Internal aerodynamic parts in the new ST18 engines are common with the flight engines.



The turbine combines the highest efficiency in its class with low maintenance costs, and features a twostage centrifugal compressor with 30.2% overall efficiency.



-HP compressor 33,000rpm

-LP compressor 27,700 rpm



The control system

The Allen Bradley PLC integrated control system incorporates a high-reliability industrial programmable logic controller with easy access system screens for operations data, diagnostic screens, trend monitoring/alarm and trip information.



The control system also features advanced DSLC™ for automatic synchronisation and load share with the installation electrical system.



The control package is supplied by Alba Power on-site, fully tested and ready for use.
