Extrusion-Plant for PVC window-profiles “system petal”

including tooling- installation.

Built beginning 1980, completely overhauled 2006

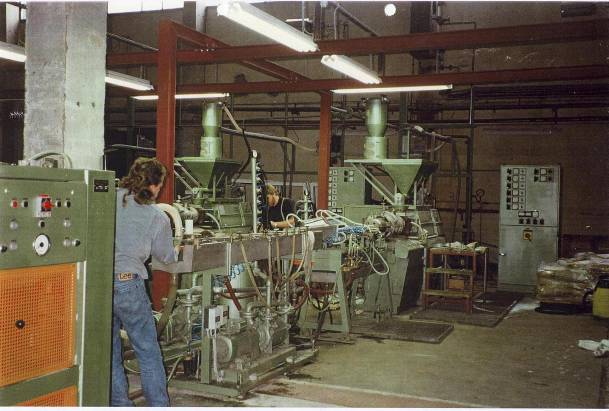

Profile- Extrusion- installation with 1 double- screw extruder for main- profiles, used, overhauled, the double- screws and cylinder new, ( less than 100 working hours ), the production- line including calibration and cooling devices, caterpillar‑

transport, automatic cut- off saw, vacuum- installation tilting and stacking devices.

Profile- extrusion installation with 1 single- screw­extruder for glasing- profiles and additional profiles, used, overhauled, screw new armour- plated, cylinder

honed “, the production- line including calibration and cooling devices, caterpillar- transport, automatic cut- off- saw, vacuum- installation, tilting and stacking devices.

Extrusion tooling for the manufacture of profiles, used, overhauled, including vacuum­calibrators. pcs. main profiles, pcs. Additional



Price: € 420.000.-



PRODUCTION DATA

Capacity Installation with 2 extrusion lines (main profiles, additionalprofiles)



about 120 000 – 150 000 meter profiles per year; about 12 000 – 15 000 windows per year with average dimensions of 120 cm width and 130 cm height, German standard.



Working time per window about 1-1.5 hours



Plant size production hall 1000 m²

Power about 150 KVA, 380 V

Cooling Water about 20 m³/hour, circulating

Pressure about 30 m³/hour, 8 atü

Raw Material required: about 200- 250 t PVC- compound or granulat year

(Profile- weight 1.0 – 1.6 kg /m)

Employees extrusion- plant : 3 shifts / 2 workmen, ( 6 workmen)

window- assembling: 1 shift, 50 – 60 windows/day ( 10- 12 workmen )

administration:     3 – 4 employees
