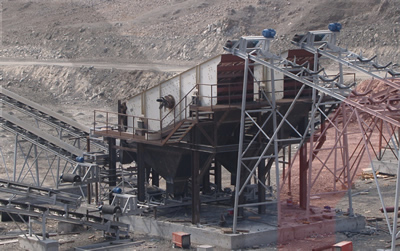

The Vibrating Screen are used to separate materials into various sizes for further processing. Or for end use. Depending on our need. The material is separated by passing it through a vibrating “screen box” which has a number of different sized screens, or meshes, which the material falls through like a sieve, the material falls onto attached conveyors which stock pile the end products

.

Feature Of Vibrating Screen:

1) High screening efficiency
2) Long bearing lifetime
2) Easy maintenance

Technical Data Of Vibrating Screen:

Models	Screen Spec (Mm)	Screen Deck	Screen Mesh (mm)	Feed size (mm)	Capacity (t/h)	Power (kw)
2YZS1548	4800×1500	2	5-50	<100	50-250	15
3YZS1548	4800×1500	3	5-50	<100	50-250	15
2YZS1848	4800×1800	2	5-50	<100	50-250	18.5
3YZS1848	4800×1800	3	5-50	<100	50-250	18.5
2YZS1860	6000×1800	2	4-40	<100	50-128	18.5
3YZS1860	6000×1800	3	4-40	<100	50-128	22
2YZS2160	6000×2100	2	5-50	<100	60-300	22
3YZS2160	6000×2100	3	5-50	<100	60-300	30

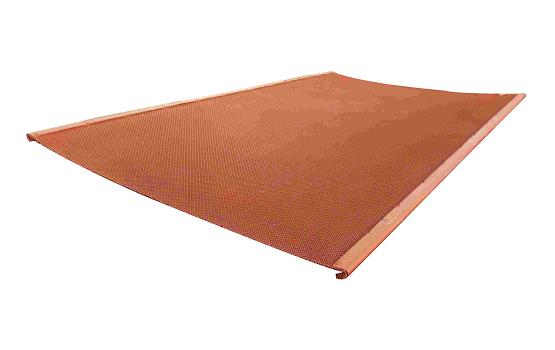

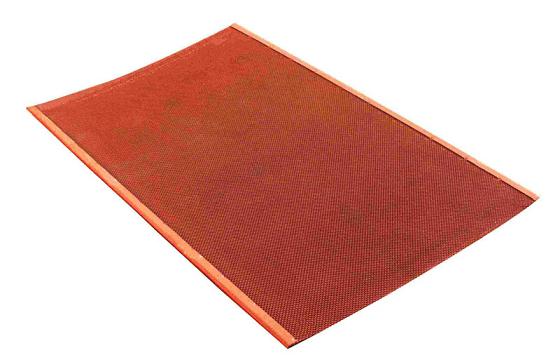

Vibrating Screen Spare Parts:
