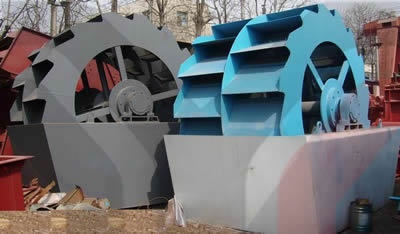

sand washing machine is depending on the practice in sand and stone production, absorbing the leading technology home and abroad, and is widely used in sand making industry. It has high efficiency and has the features of reasonable structure, high capacity and low consumption. It can make final products free from dirt and impurities and reduce the high quality sand loss. It is on behalf of the new technique compared with the same equipment in other companies.

Feature Of Sand Washing Machine:

1. Simple structure. The bearing device of impeller drive is separated from water and materials with water, to avoid in a large degree that the bearings are damaged by being soaked with water, sand or some polluted things.
2. Being used for cleaning sand in quarries, it has many advantages compared with traditional spiral sand washing machine: There is little loss for medium-sized and fine sand and stone powder. The grade and the fineness of the sand for construction after being washed can be up to the national standards, such as sand for construction and cobble and broken stones for construction. There are no other wear parts except the screen mesh. It has longer service life and lower maintenance frequency





Technical Data Of Sand Washing Machine:

Model	XSD2610	XSD2910	XSD3010	XSD3016
Spec. of Impeller(mm)	Φ2600 ×1000	Φ2900 ×1000	Φ3000 ×1000	Φ3000 ×1600
Impeller Speed(r/min)	1.178	1.177	1.179	1.5
Capacity(t/h)	20-50	30-60	40-70	50-120
Input Size(mm)	≤10	≤10	≤10	≤10
Motor Power(kw)	11	11	11	15
Decelerator Model	JQZ350-31.5-I	JQZ350-31.5-I	JQZ400-31.5-I	ZQ650-31.5-I-Z
Overall Dimension（mm） (L×W×H)	3590x 2232x 2877	3590x 2232x 2949	3990x 2232x 3180	3845x 3000x 3080
