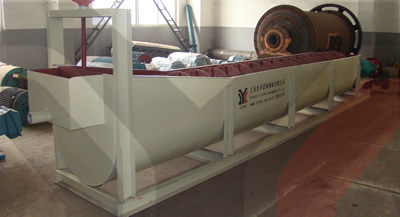

Stuff with different specific gravity falls at different speed in fluid, by this principle and combined with grinders; spiral separator is used to eliminate dust and water in the mining material.

Before starting, firstly check the tightness of all the bolts, then raise the handle to make the machine work without load, after making the deposit move, the machine can work normally. The two ends of the bearing should be always maintained with lubricant.

Washing:

The sand is feeding into the sediment pool from the feeding box, acting by rotating screw blade, the sand is turning and rolling and grinding each other to eliminate impurity and water-air layer around sand to facilitate de-water. The fresh eater rising current from the porous plate carry foreign matter to water surface and overflow the weir plate, to finish washing processing.

De-watering:

The sand with bigger density is sunken down to tub bottom, the screw blade push this sand upwards, when passing through upper tub of proper length above water level, the water is draining into sediment pool from another drainage ditch, the de-watered sand is out from the discharging opening.

Classifying:

Material classifying is realized by overflowing the non-needed fines, the controlling method is adjusting height of overflowing weir and adjusting speed of screw.

Technical Data Of Screw Washer:

Type (m)	Rotary Speed (r/min)	Capacity(t/d)		Chute Slope	Power ( kw)	Weight (T)
		Sand of Return	Flooding
300	8.3-22	30-80	10-30	12	Y1.1-6	1.0
500	8-15.5	140-260	32	14-18	Y1.1-6	1.6
750	4.5-10	250-570	65-154	14-18	Y3-6	2.7
1000	1.6-7.4	216-1000	50-260	14-18	Y5.5-6	4.1
1200	5-7	1170-1600	155	12	Y7.5-6	7.5
1500	2.5-6	1340-2740	235	16	Y7.5-6	10.5
