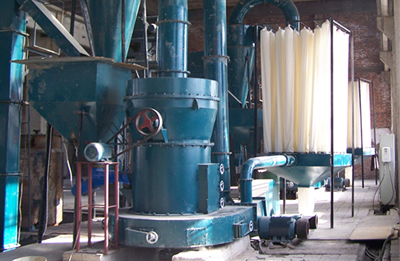

R Pendulum Mill
R Pendulum Mill
The R Raymond Mill are mainly used in grinding more than 280 noninflammable and nonexplosive materials with a Moth’s hardness below 7 scale, a humidity below 6%, such as barite, calcite, potash, pencil stone, marble, limestone, ceramic, glass and other materials which used in mining, construction, chemical and metallurgy. The size of powder can be controlled ranging from 80 to 325 meshes.
.
Feature Of R Pendulum Mill:
1. High capacity.
2. Wide size range of final product
3. National dust-dump standard.
Technical Data Of R Pendulum Mill:
| models | roller
(pcs) |
roller size (mm) | max. Feed size(mm) | product size (mm) | capacity (t/h) | power (kw) | weight (t) |
| 3R1410 | 3 | 140
X 100 |
8 | 0.125
-0.044 |
0.2- 1.2 | 7.5 | 1.6 |
| 3R2115 | 3 | 210
X 150 |
15 | 0.125
-0.044 |
0.4- 1.6 | 15 | 3.6 |
| 3R2615 | 3 | 260
X 150 |
20 | 0.125
-0.044 |
0.8- 2.5 | 18.5 | 4.2 |
| 3R2715 | 3 | 270
X 150 |
20 | 0.125
-0.044 |
0.9- 2.8 | 22 | 4.8 |
| 4R3016 | 4 | 300
X 160 |
20 | 0.125
-0.044 |
1.2- 3.5 | 30 | 8.5 |
| 4R3216 | 4 | 320
X 160 |
25 | 0.125
-0.044 |
1.8- 4.5 | 37 | 15 |
| 5R4119 | 5 | 410
X 190 |
30 | 0.125
-0.044 |
2.5- 8.5 | 75 | 24.5 |

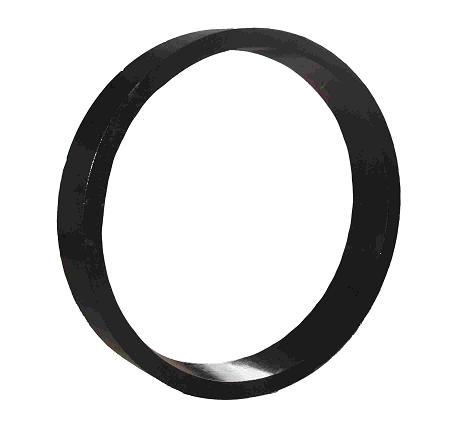

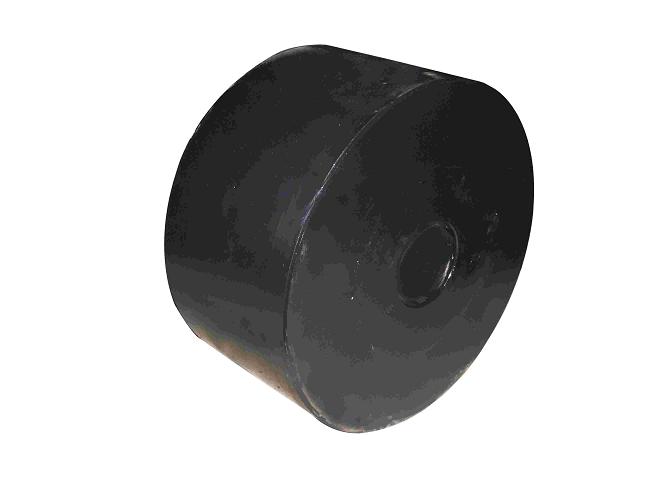

R Pendulum Mill Spare Parts:
