The Magnetic Separator can separate the raw materials with different magnetic rigidities. The machine works under the magnetic force and machine force. Magnetic Separators are designed to recover ferromagnetic materials. The separators are available in designs and sizes to provide solutions for all applications. The heart of each separator is the magnetic system with its unique design, which has a proven record of high efficiency. The Magnetic Separators are available in cyclic design with process vessel diameters from 220 mm to 3,050 mm.

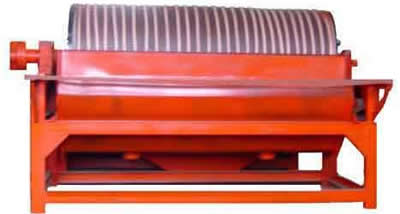

magnetic sepatator

Magnetic Separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, ilmenite, and tantalum-niobium, etc. In recent years, it is also more and more applied in purifying quartz, feldspar and nepheline. Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix. It possesses the following advantages: short magnetic circuit, little magnetic flux leakage, high magnetic intensity, low energy consumption, fine beneficiating results, simple structure and easy to maintain. They have been found widely used in more than 20 mineral processing plants of Germany.

Technical Data Of Magnetic Separator:

Model (m)	Capacity (t/h)	Power ( kw)	Weight (T)
CTBФ600×600	5-10	Y1.1-4	0.85
CTBФ600×900	8-15	Y1.1-4	0.91
CTBФ600×1200	10-20	Y2.2-4	1.13
CTBФ600×1800	15-30	Y2.2-4	1.34
CTBФ750×1200	12-25	Y3-4	1.49
CTBФ750×1800	30-45	Y3-4	2.05
CTBФ900×1800	35-60	Y4-4	3.0
CTBФ1050×1800	40-75	Y4.5-4	4.2
