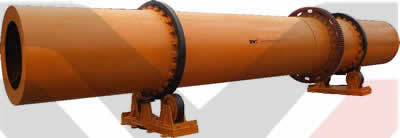

Rotary Drying Machine
Rotary Drying Machine
The Drying Machine is used for drying materials with a certain humidity or granularity in milling of ores, building materials, metallurgy and chemical industry. Gyro drying machinery has a strong adaptability of materials and it can dry various materials. The operation is very simple and liable.
.
.
Technical Data Of Rotary Drying Machine :
| Type | volume (m)3 | Speed (r/min) | Ascent ( %) | Power ( kw) | Weight (T) | Overall dimension (mm) |
| 0.6*8 | 2.26 | 8 | 3-5 | 4-6 | 5.1 | 8*1.23*1.46 |
| 0.6*10 | 5.02 | 7.2 | 3-5 | 4-6 | 6.9 | 10*1.86*2.062 |
| 1*10 | 7.85 | 6.73 | 3-5 | 5.5-6 | 7.5 | 10*1.875*2.069 |
| 1.2*12 | 13.31 | 5.8 | 3-5 | 11-6 | 13.1 | 12*2.159*2.475 |
| 1.5*12 | 21.2 | 4.8 | 3-5 | 15-6 | 22.3 | 12*2.655*2.895 |
| 2.2*14 | 53.22 | 3.2 | 5 | 30 | 52.8 | 18*4.5*6.0 |
| 2.4*18 | 81.43 | 3 | 3-5 | 37 | 73.3 | 19*5.25*6.5 |
| 2.8*24 | 147.8 | 2.59 | 4.362 | 75 | 97 | 28*6.0*7.0 |
