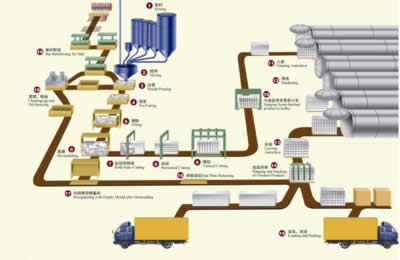

1. First,dose and match measured raw materials
2. After distributing,feed raw material into pouring mixer to make slurry
3. Through thoroughly mixing,the slurry is poured to mould
4. After pre-curing under a certain temperture and time,the block would reach a certain hardness prepare for cutting
5. Tilting hoister would turn over 90 degree of mould
6. Then open the mould and separate it from block,and take the block woth side plate ti cutting cart
7. The blocks then be cut through the cutter firstly of two vertical sides of block
8. Secondly the horizontal cutting
9. Finally the vertical cutting
10. After cutting,the block is hanged to trolly with side plate by semi-finished product hoister
11. Organizing the cut blocks and put them into autoclave
12. Hardending the blocks under certain temperture and pressure
13. Take finished products out of autoclave
14. The finished product hoister take the finished product to stock shield
15. Packed for loading
16. The side plate return back by side plate roller
17. Side plate would be organized with open mould
18. Clean the mould and preparing for next pouring
19. Steel bars processing line for slab production
