Upset Hoist
Use: Upset hoist make base body (bring mould , side board) in sky 90 of upset, is it is it cut platform or cut car to put to hang, the drawing of patterns is cut . In addition carry on group mould mould frame and side board that return that drawing of patterns get off, is it transport to pour carriage return pour circulation on the line to hang.
Size: 4/4.2m、4.5/4.8m 、6m
Size: 4/4.2m、4.5/4.8m 、6m
Type That Step By Step Cutting Machine
Principle:
Upset hoist bring mould base body sky 90 of upset is it cut car to put together, drawing of patterns is it at cutting car , cut base body with side board car power by electrical machinery and walk to stay, finish cuts vertically , mills the trough , level to cutting through cutting the device vertically; Cut the car and continue walking after the central position of the crosscut device stops, the crosscut device is started, crosscut shelf from top to bottom vertical to is it is it finish horizontal to cut to cut to lay; Cut car walk to organize into groups hoist place organize into groups hoist hang to is it raise car to steam base body (incline board in succession ) again, cut car return to primitive position carry on next to cut circulation.
Character：
1.the model structure is simplified practically, the maintenance easy to install;
2.The base body side sets up and puts and makes the width of base body 600mm, the height is 1200mm, cuts the steel wire short, difficult to break, it is difficult to float, it is high to cut the precision;
3.The vertical cutting equipment is regular, cut the small garage and leave and finish cutting vertically , cut time short. Crosscut device adopt steel wire cut under the level, is it cut steel wire length to shorten , guarantee precision of cutting。
4.Base body side can vertical to is it mill trough to finish when cutting after setting up, is it mix notch process the equipment separately to need;
5. Copies of model make to base body six cut , products quality does not out of shape to influence mould mould oil have;
6.A model can also produce the panel besides producing the building block;
7.Model cut course (upset , vertical cut , crosscut ) is it finish with the Engineer location to divide, every engineering location work simplification, operate and maintain it conveniently.
Upset hoist bring mould base body sky 90 of upset is it cut car to put together, drawing of patterns is it at cutting car , cut base body with side board car power by electrical machinery and walk to stay, finish cuts vertically , mills the trough , level to cutting through cutting the device vertically; Cut the car and continue walking after the central position of the crosscut device stops, the crosscut device is started, crosscut shelf from top to bottom vertical to is it is it finish horizontal to cut to cut to lay; Cut car walk to organize into groups hoist place organize into groups hoist hang to is it raise car to steam base body (incline board in succession ) again, cut car return to primitive position carry on next to cut circulation.
Character：
1.the model structure is simplified practically, the maintenance easy to install;
2.The base body side sets up and puts and makes the width of base body 600mm, the height is 1200mm, cuts the steel wire short, difficult to break, it is difficult to float, it is high to cut the precision;
3.The vertical cutting equipment is regular, cut the small garage and leave and finish cutting vertically , cut time short. Crosscut device adopt steel wire cut under the level, is it cut steel wire length to shorten , guarantee precision of cutting。
4.Base body side can vertical to is it mill trough to finish when cutting after setting up, is it mix notch process the equipment separately to need;
5. Copies of model make to base body six cut , products quality does not out of shape to influence mould mould oil have;
6.A model can also produce the panel besides producing the building block;
7.Model cut course (upset , vertical cut , crosscut ) is it finish with the Engineer location to divide, every engineering location work simplification, operate and maintain it conveniently.
| Parameter | Unit | Index |
| Capacity | milion m3/year | 10-30 |
| Max size | meter | 4-6×1.2×0.6 |
| Cut moduluses | millimeter | 5/5（slit、transversely） |
| Cut precision | millimeter | ±2：±1；±1 |
| Production cycle | minute/mould | 4.5-6 |
| Capability | Kilowatt | 11/20.5 |
| Weight | Kilogram / cubic meter | 400-700 |

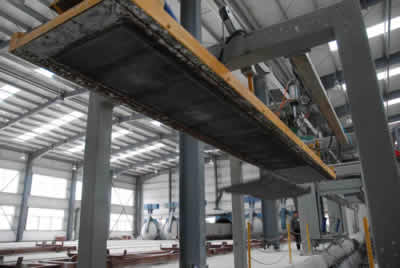

Hood
Vacuum function:After cutting,the waste slurry at the top shall be removed by vacuum,so the use ratio raise up. Tilting Table
After block wa cut,the tilting table turns it 90 degree, and remove the waste slurry that at the bottom of block.It can increase the usage rate. Semi-Product Hoister
After cutting,semi-product hoist carry block to harden car for marshaling. Harden Car
The trolley is a carrier to carry the side plate and blank to cutter and leave autoclave
.
