Floating Hospital
Floating Hospital

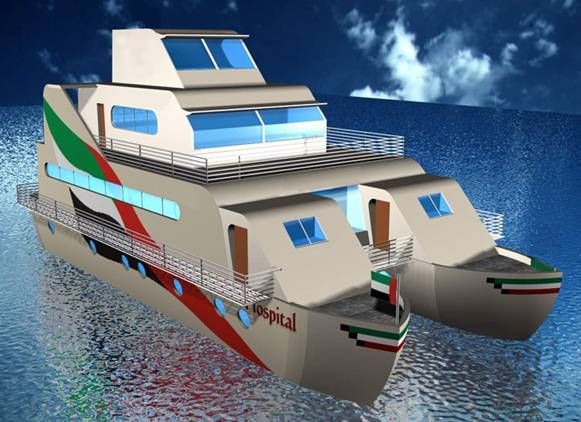

The Floating Hospital is a fully equipped and functional hospital. It is based on a catamaran hull thus providing an exceptional amount of available floor space. With its shallow draught it is very well suited for use in all types of navigable waterways.
Scope of Supply
In general, the scope of supply comprises engineering, procurement, manufacturing and delivery of the Floating Hospital consisting of:
- Catamaran hull 25 meters, river application
- On-board reception area
- Pre-Operating room
- Operating room
- X ray facilities
- Laboratory
- Sterilization
- Ward for patients
- Pharmacy
- Wards for crew and staff
- Kitchen
- Dining facilities
- Laundry
Medical modules (with all necessary specialty instruments) that can be included are, amongst others:
- General surgery
- Gynaecology
Please refer to Scope of Supply for further details.
The modules can be supplied in any configuration you may want, please refer to Price List for detailed prices.
Scope of Supply.
Catamaran
The Catamaran is designed with symmetric hulls and optimized for low hull resistance, river application.

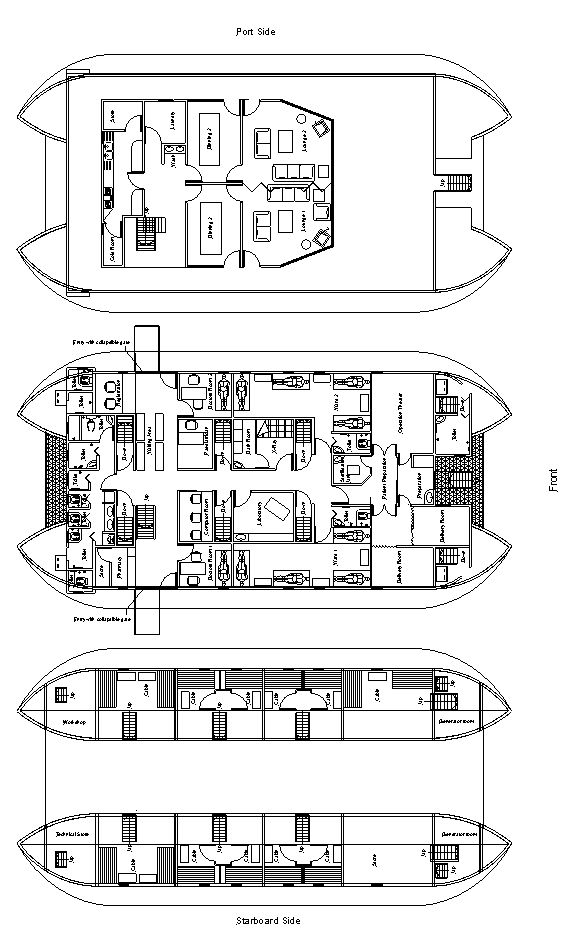

Main Dimension
Length overall 25.0 meters
Beam overall 12.8 meters
Upper Level:
Dining 2 units
Cold Store
Kitchen
Laundry
Lounge 2 units
Store
Medical Deck:
Computer Room
Delivery Room 2 units
Doctors Room 2 units
Doctors’ Preparation room
Laboratory
Operation room
Paediatrician
Patient Preparation
Pharmacy & Store
Registration & Waiting Area
Sterilization
Toilets 7 units
Ward with ICU for 4 patients 2 units
X-ray
Crew Deck:
Crew Cabin Small 8 units
Crew Cabin large double 3 units
Generator room
Store
Technical Store
Workshop
Equipment
To equip each of the above mentioned rooms the floating hospital may include – amongst others – the below mentioned modules:
Nursing module
Each nursing module contains all the necessary nursing equipment to establish and maintain a surgical ward for 8 inpatients.
X-ray module
The X-ray module contains a complete X-ray department including X-ray machine, manual developing equipment, darkroom equipment, chemicals, films, light boxes and protection equipment.
Sterilization module
The Sterilization module includes equipment for Clean and Dirty Utility such as steam autoclave, working table, heat sealer and instrument table.
Operating Room module
The Operating module contains a complete Operating department including operating table , ceiling light, diathermy incl. trolley, anaesthesia machine, ECG – monitor, defibrillator, supply of O2 and N2O, etc.
Intensive Care Unit module
The module contain equipment for treatment of two patients with volume respirators, defibrillator, ECG monitor, trolley w/ drawers, infusion stand, suction ejector, O2-flowmeter, catheter holder, infusion pump.
Pharmacy Module
This module will contain drugs and other pharmaceutical items. The contents will be adjusted to reflect the geographic areas of operations of the, as well as its intended use.
Office Module
The module contains general office supplies
Laundry Unit
The module contains equipment for washing, drying and ironing.
Kitchen
The module contains general kitchenware.
Dining Module
The module contains general dining tools.
Price List (Prices are subject to change – ask for update)
The modules can be supplied in any configuration you may want, please find our price list for individual modules and equipment (price = 1 unit/package):
Modules | No. of units | Price 1 unit | in EURO |
Operating Theatre | 1 | unit | 87,920.56 |
Ward with Intensive care Unit | 2 | unit | 77,979.98 |
X Ray Module | 1 | unit | 249,753.92 |
Laboratory Module | 1 | unit | 36,966.80 |
Sterilisation Module | 1 | unit | 61,346.88 |
Pharmacy & Store Module | 1 | unit | 10,270.00 |
Obstetric / Gynaecology | 2 | unit | 15,368.22 |
Preparation & General Examination | 3 | unit | 3,891.56 |
Polyclinic Equipment | 3 | unit | 18,485.93 |
Registration, Waiting Area & Computer Room | 1 | unit | 30,436.17 |
Dental Equipment | 1 | package | 57,191.81 |
Surgical Instruments and Consumables | 1 | package | 65,634.87 |
Polyclinic tools | 1 | package | 24,830.00 |
Kitchen & Laundry Module | 1 | package | 17,588.75 |
Dining & Lounge Module | 1 | package | 7,062.50 |
Accommodation | 1 | package | 8,579.42 |
Catamaran 25 Meters | 1 | unit | ask |
